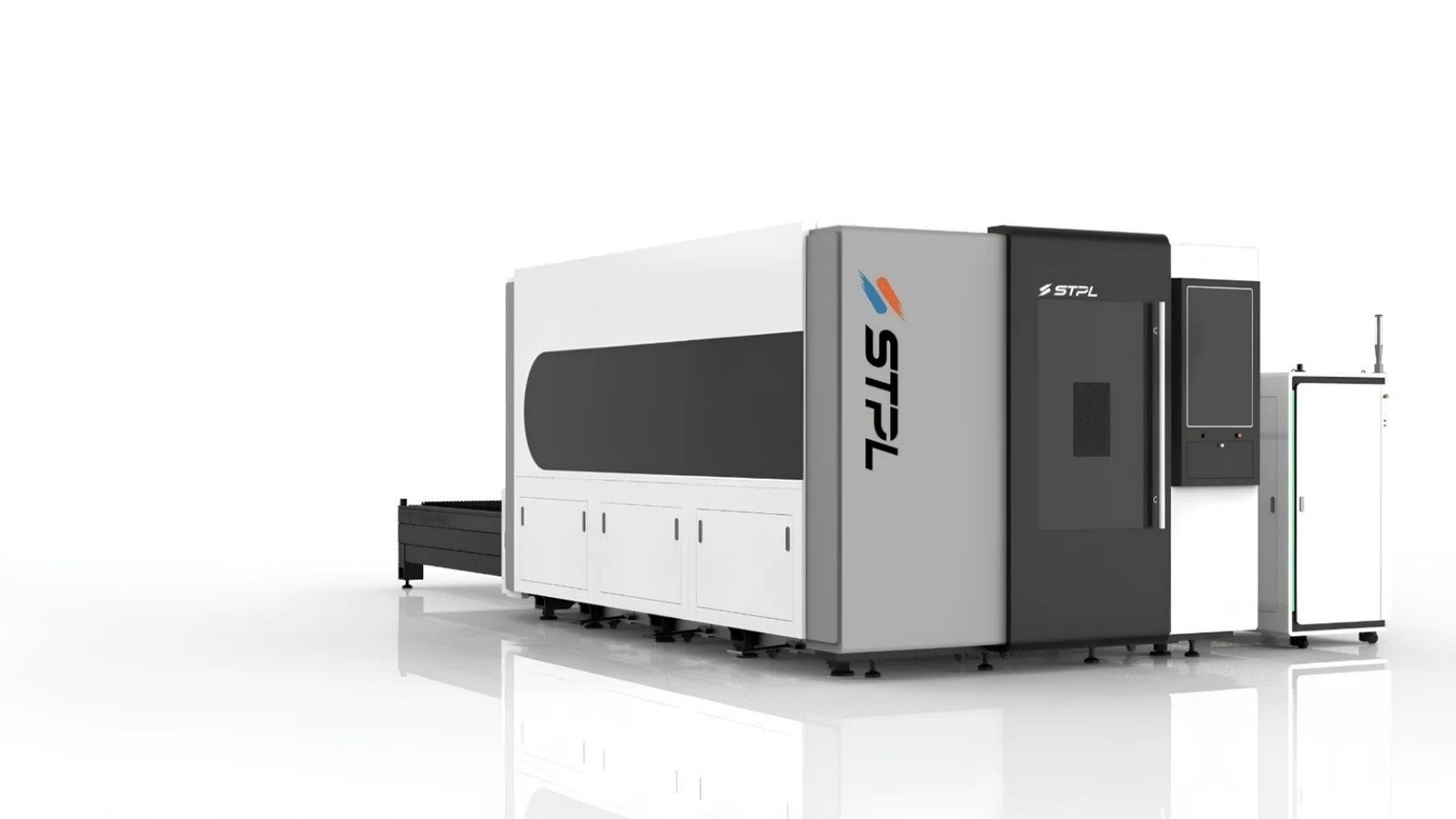

The LCM 6525 DPF Fully Enclosed Fiber Laser Cutting Machine is engineered for high-speed, high-precision sheet metal processing in modern manufacturing environments. Manufactured in our own manufacturing unit, this advanced enclosed cutting system provides enhanced operator safety, improved production efficiency, and superior cutting performance. As India’s leading Fiber Laser Cutting Manufacturer, STPL delivers innovative laser technology designed to maximize productivity while maintaining exceptional cut quality.
Equipped with a maximum acceleration of 1.5G and a linkage speed of up to 120m/min, the LCM 6525 DPF is specifically designed for efficient batch processing of medium and thin metal sheets. Its advanced motion system enables faster cutting cycles, increased throughput, and improved manufacturing productivity without compromising precision.

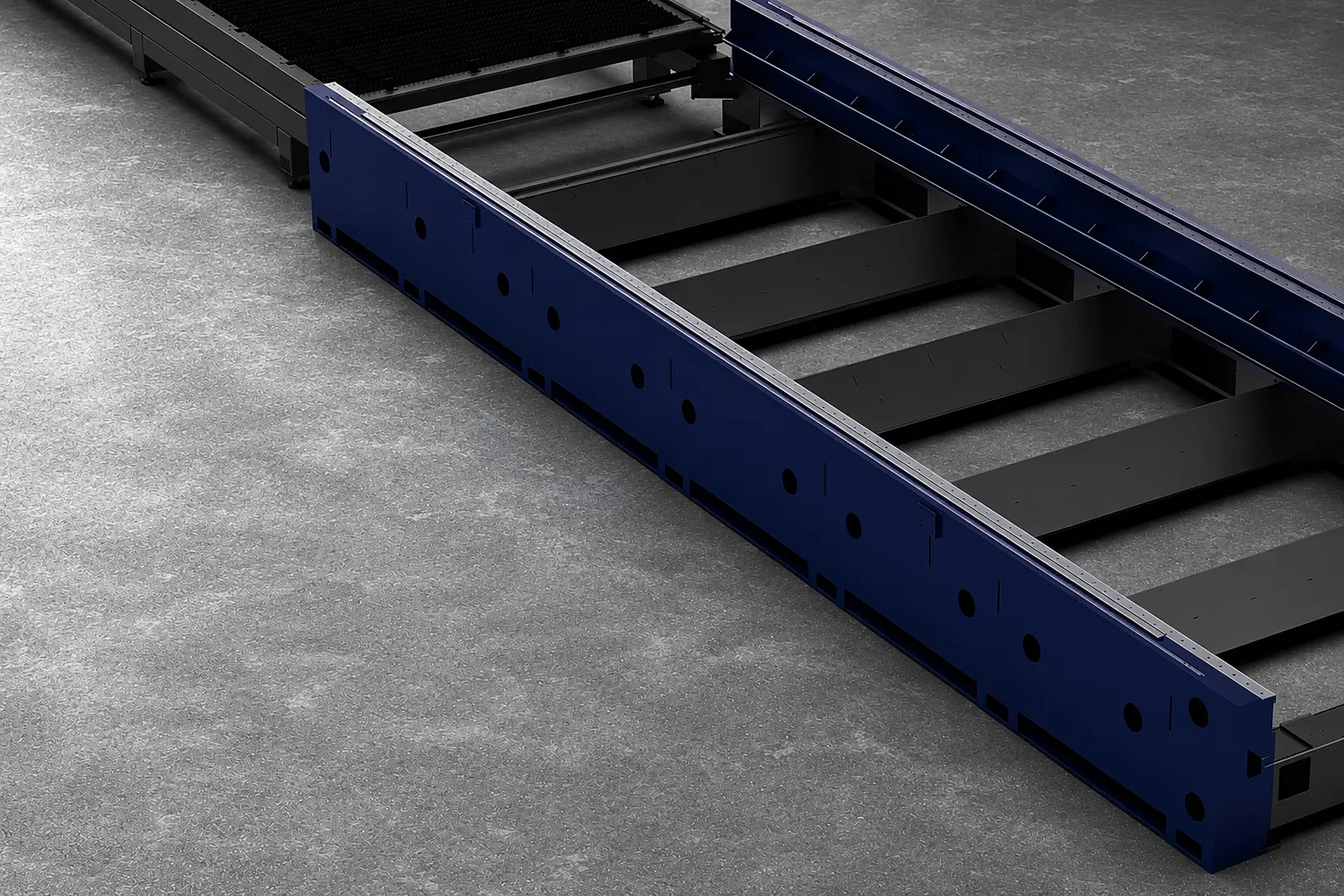

The machine features a robust self-developed pallet exchange system with a plug-in double-beam structure. Engineered for continuous industrial operation, the heavy-duty design prevents deformation during long-term usage and ensures stable machine performance under demanding production conditions.
Utilizing innovative fire-resistant and heat-insulation technology, the enclosed cutting chamber effectively minimizes thermal influence on machine components. This advanced design improves equipment longevity while maintaining cutting precision during extended production runs.

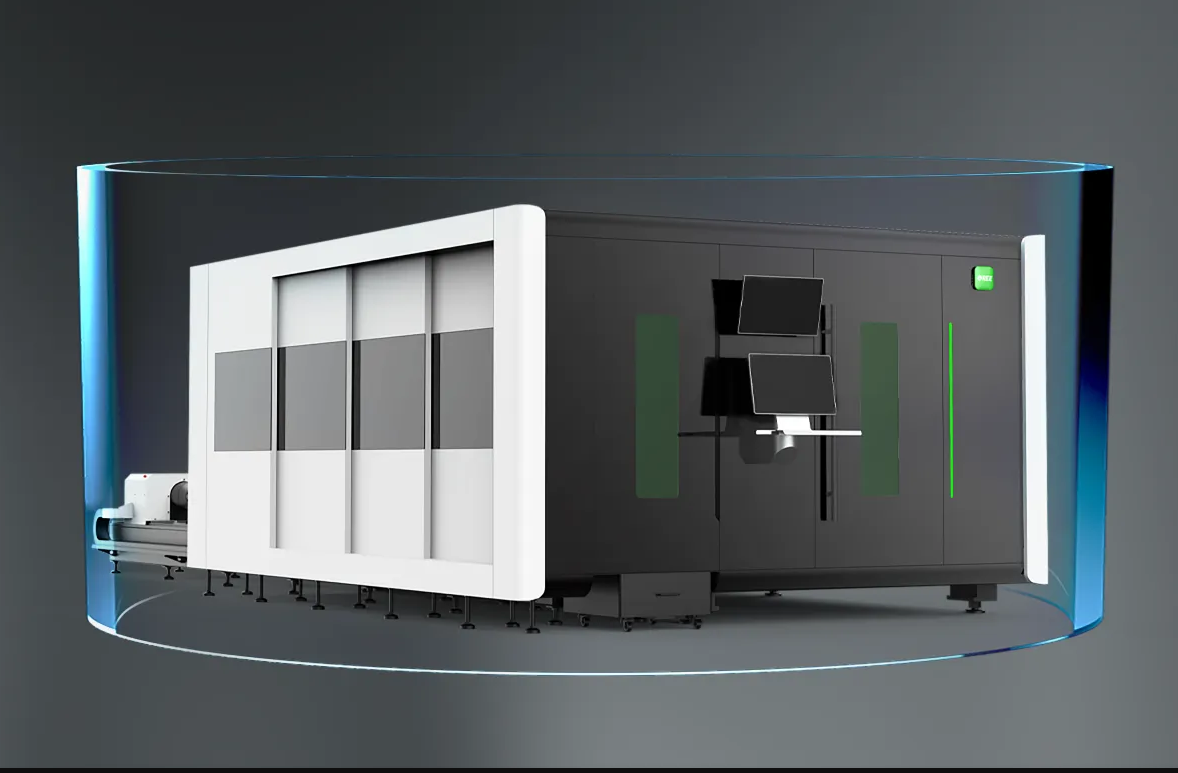

The enclosed structure provides superior operator protection while maintaining a clean and controlled cutting environment.
Designed for large-volume manufacturing with faster processing speeds and improved production efficiency.
Integrated pallet exchange system minimizes downtime and maximizes machine utilization.
Delivers accurate cuts with exceptional edge quality and repeatable production results.
| Cutting Area | 3000mm × 1500mm |
| X-Axis Running Area | 1530mm |
| Y-Axis Running Area | 3050mm |
| Z-Axis Running Area | 100mm |
| Max. Positioning Speed | Upto 120m/min |
| Max. Accelerated Speed | Upto 1.2G |
| Electric Voltage | 380V |
| Phase | Triphase |
| Frequency / Current | 50Hz / 60Amp |
| Positioning Accuracy | ±0.03mm |
| Repositioning Accuracy | ±0.03mm |
| Min. Line Width | 0.15mm |
| Length | 8325mm |
| Width | 3840mm |
| Height | 2311mm |
| Material | 1500W | 2000W | 3000W | 6000W | 12000W | 20000W |
|---|---|---|---|---|---|---|
| Mild Steel (O2) | 10 | 12 | 18 | 22 | 35 | 50 |
| Stainless Steel (N2) | 5 | 6 | 8 | 14 | 25 | 35 |
| Aluminium | - | 5 | 6 | 12 | 18 | 30 |
| Brass | - | 4 | 5 | 10 | 18 | 20 |
We work with a wide range of high-quality materials to meet the diverse requirements of different industries and applications. Our CNC machining processes are designed to handle metals.
Precision cutting of body panels, structural components, chassis parts, and fabricated assemblies.
Production of machine frames, equipment enclosures, brackets, and precision-engineered industrial parts.
Accurate processing of electrical cabinets, control panels, switchgear enclosures, and mounting structures.
Manufacturing lightweight precision components requiring superior dimensional accuracy and edge quality.
